Digital Synthesis FM TransmitterSchematics and PCBs |
 |
Schematics

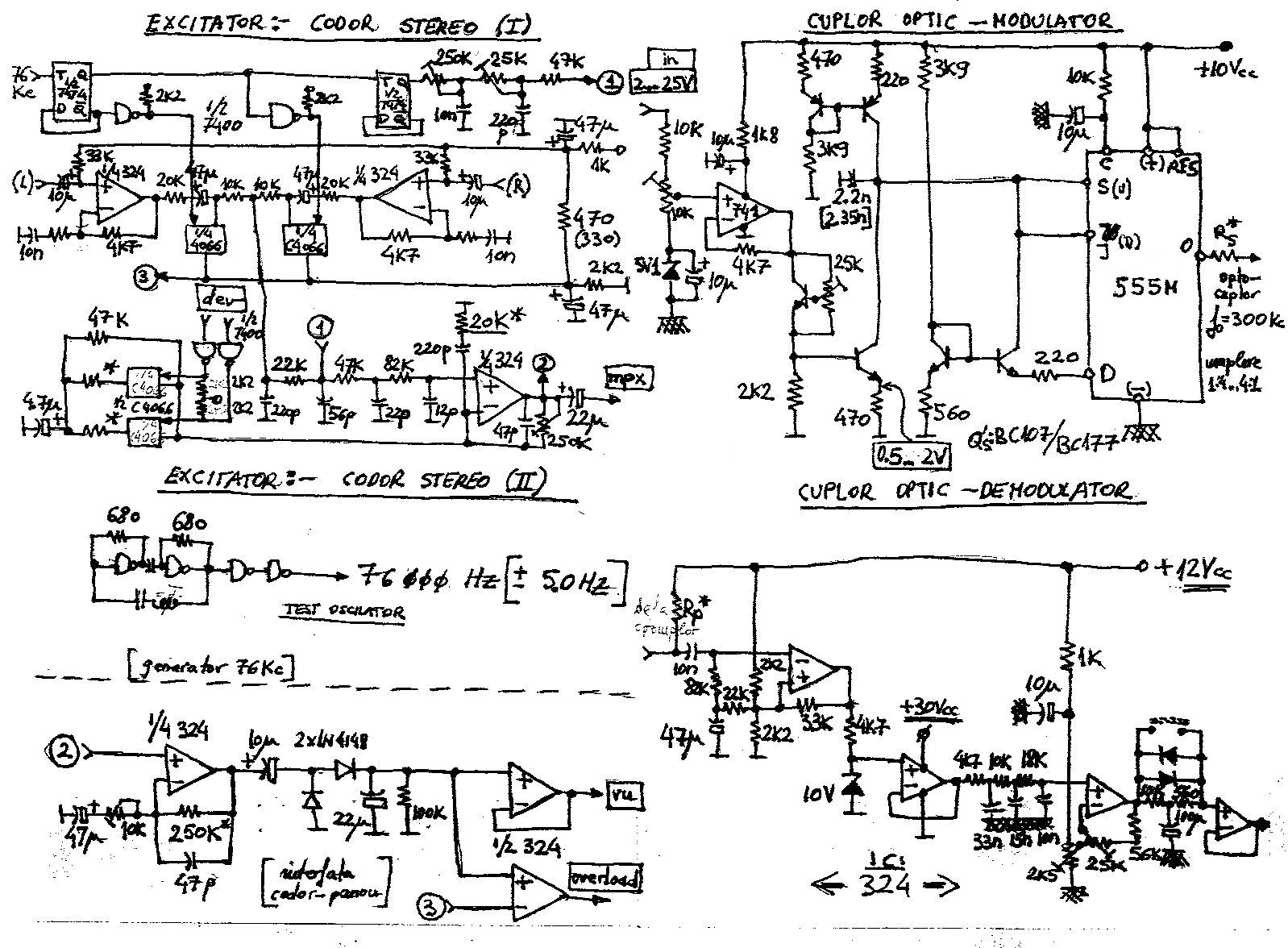

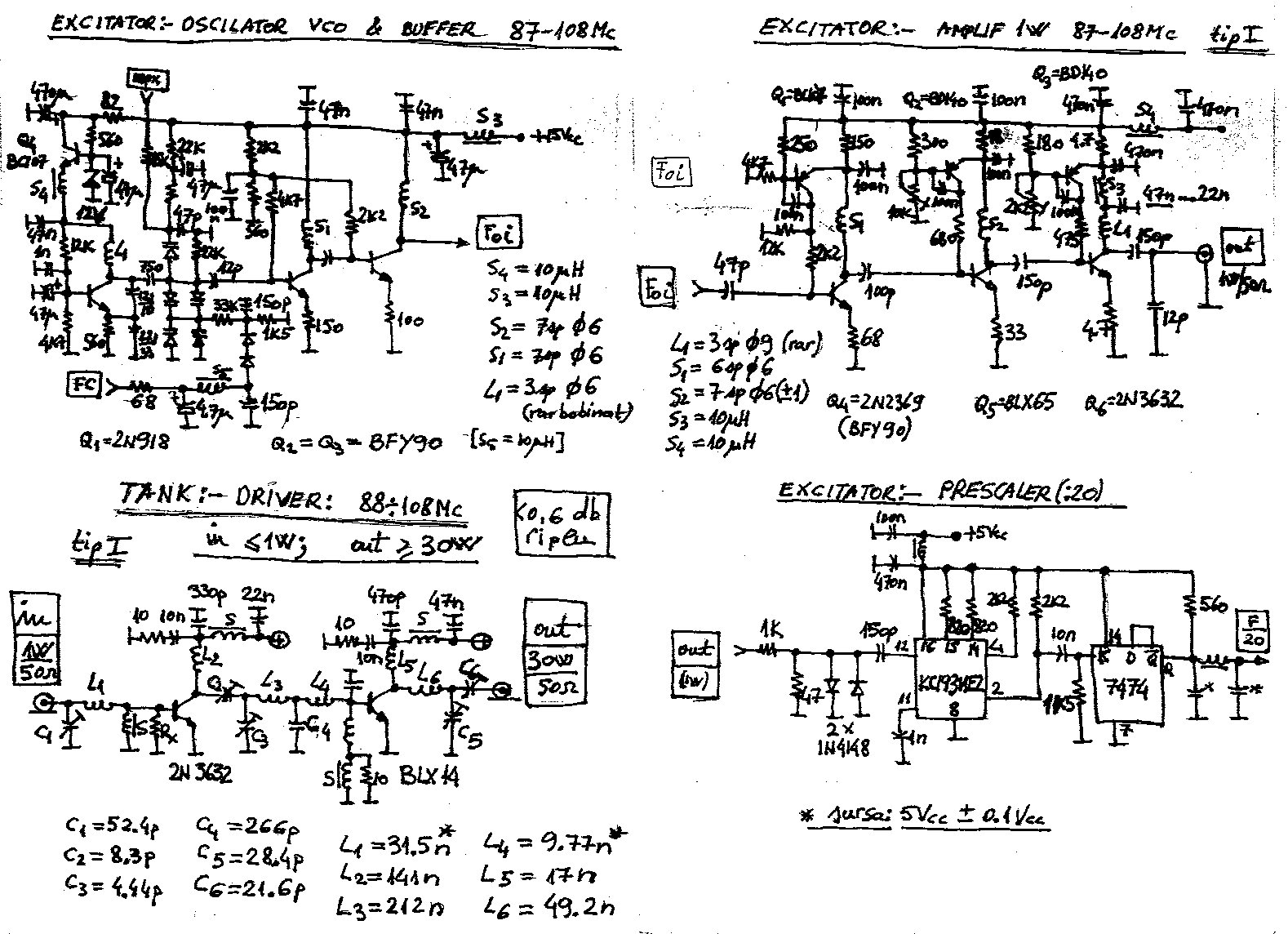

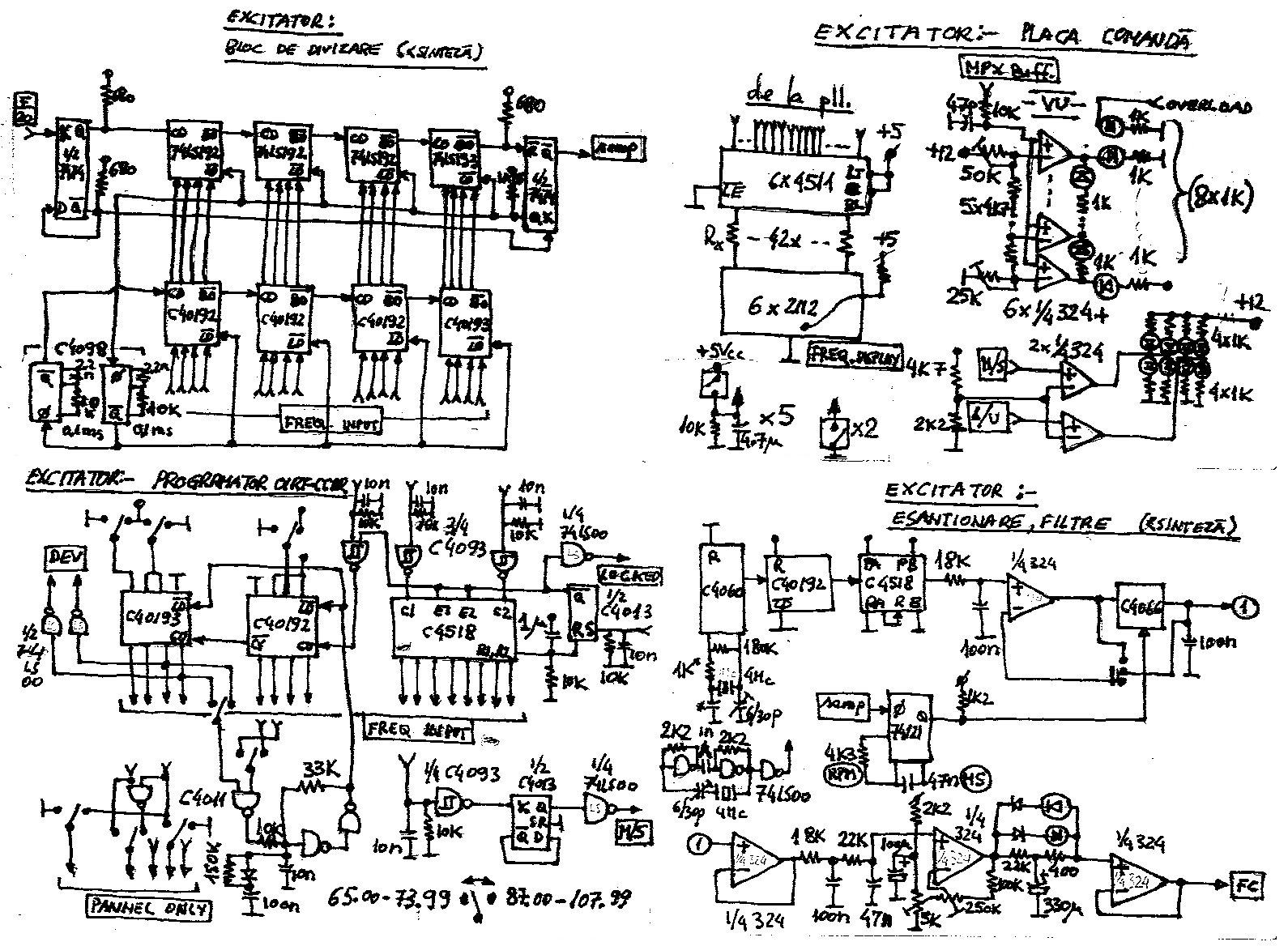

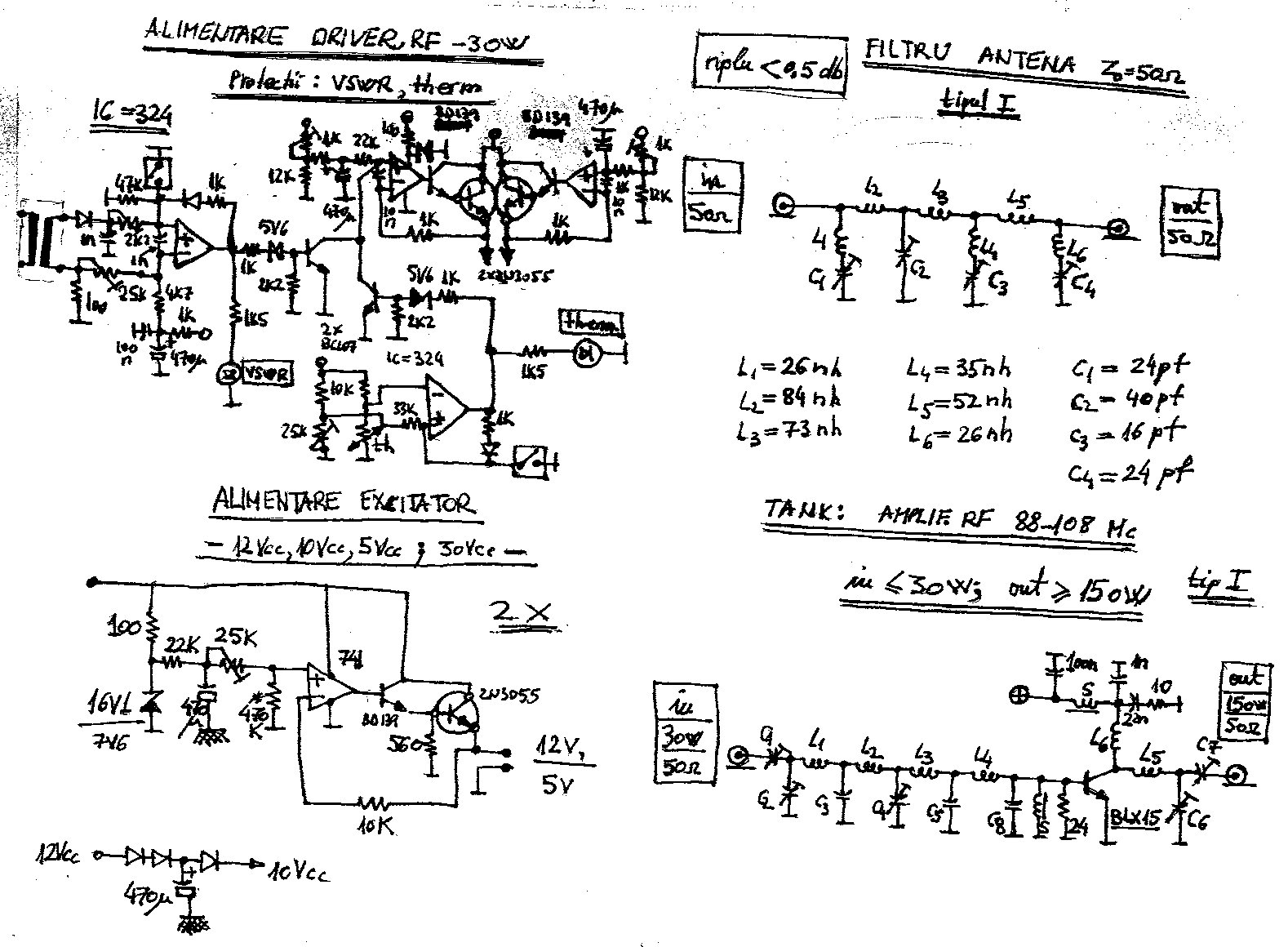

- hand-drawn schematics
- details available upon request
PCBs

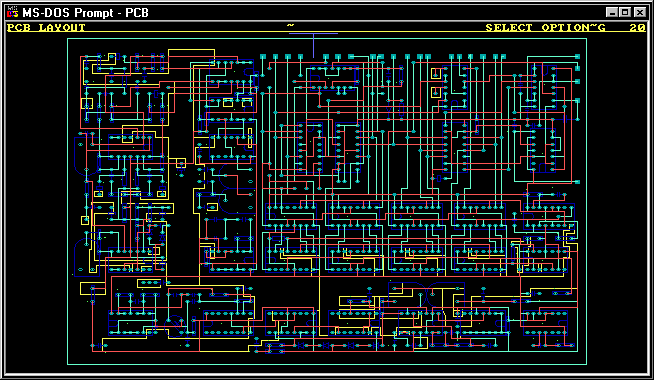

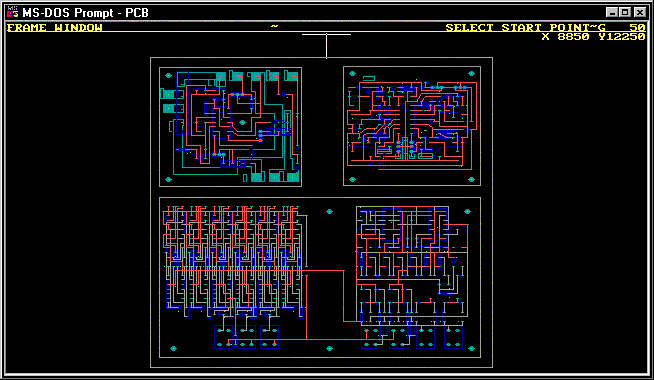

- manually designed PCBs
- CadStar 1.1 for DOS format
- details available upon request
