Keyboard Geometry Extractor
|
This module identifies the coordinates of
the polygons which outline the keys of a musical instrument keyboard.
This is achieved via a combination of prior knowledge about the
geometrical characteristics of the keys on a musical keyboard (with said
prior knowledge being hardcoded in the image parser algorithm), together
with a complex series of image filtering and filter results
post-processing.

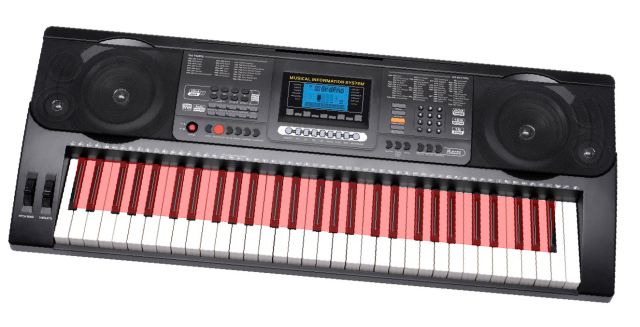

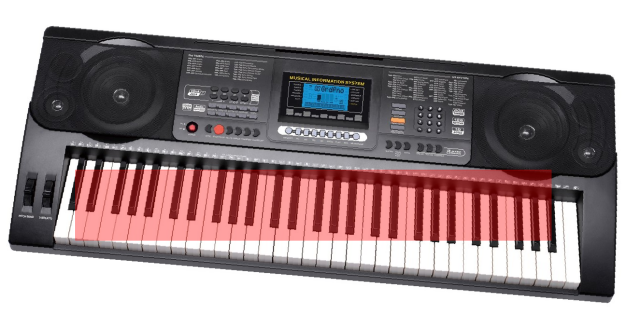

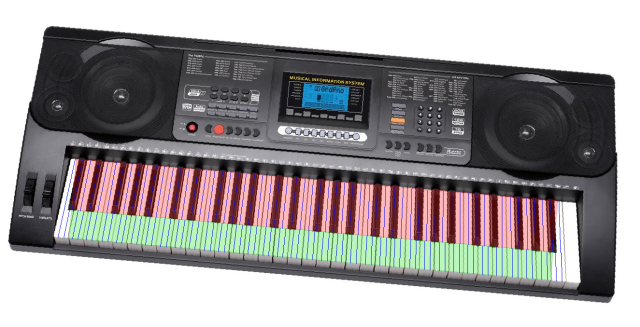

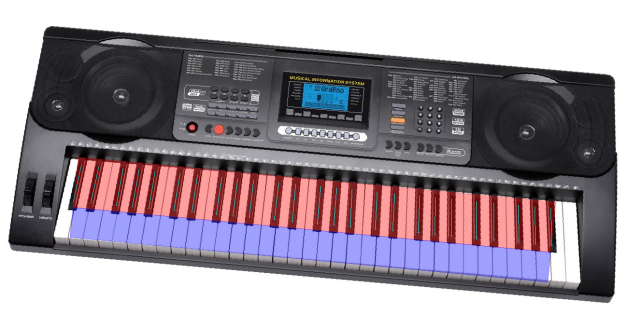

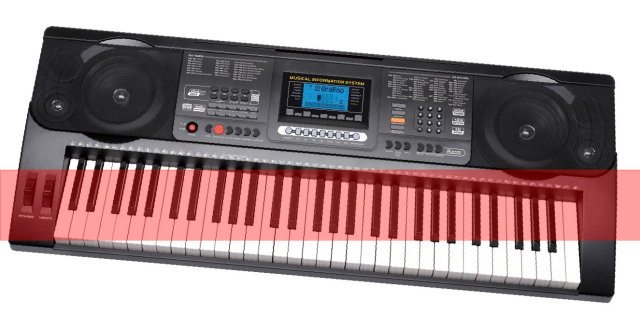

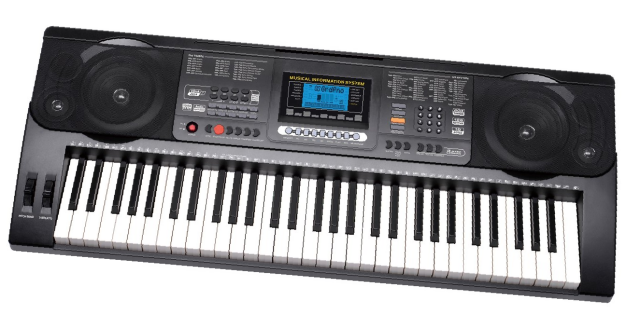

Succession of steps during keyboard image processing

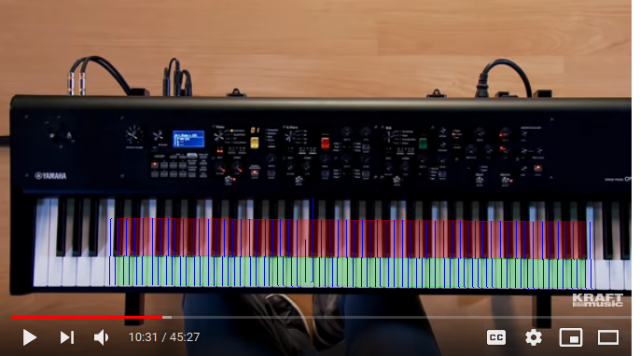

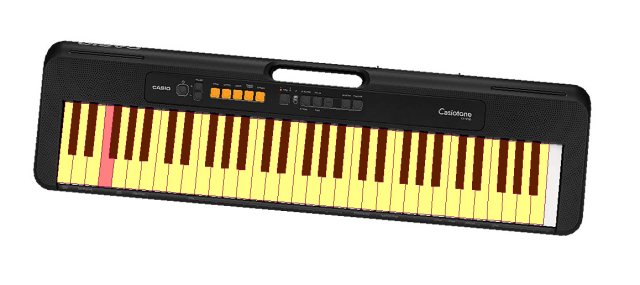

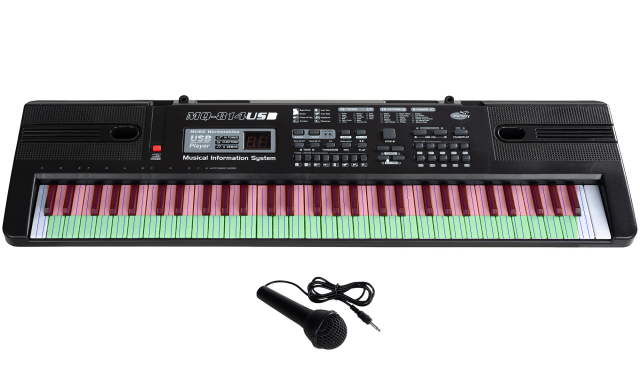

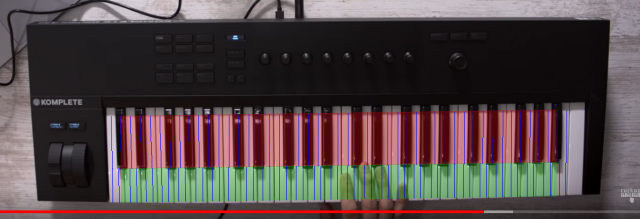

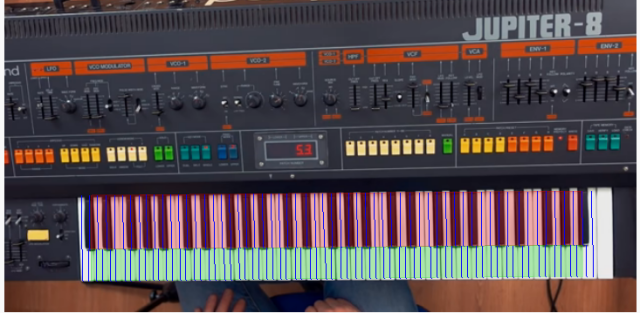

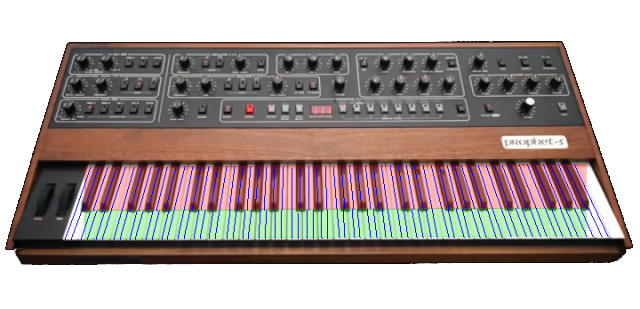

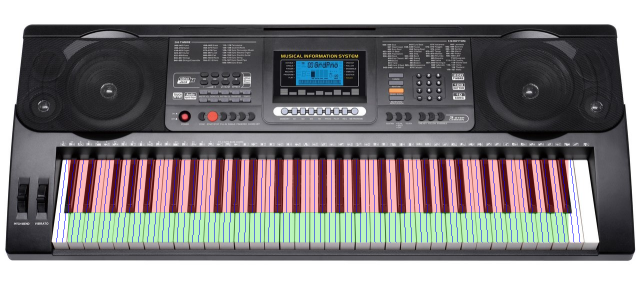

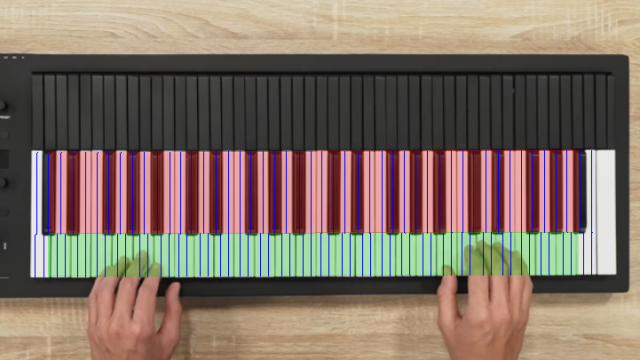

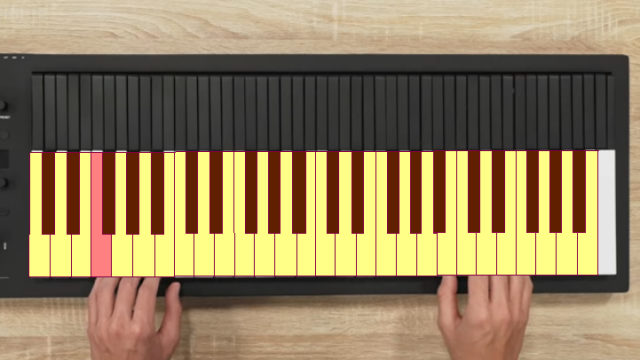

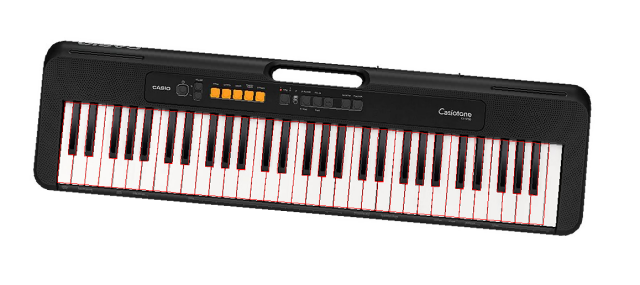

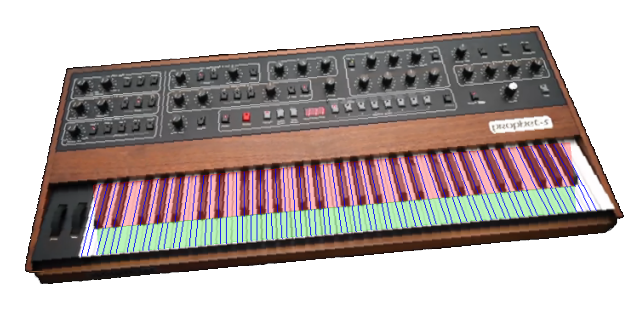

Examples of keyboard geometry extraction outputs
